Description
The Kink Cloud is Kink Pro team rider Travis Hughes’ signature bike. If you’ve seen Travis ride, you know there is just about nothing he can’t do on a bike, and the Cloud is based on his personal geometry preferences. Component wise, the Kink Cloud has got you covered with the included four plastic pegs and rear freecoaster wheel. The stealthy Matte Iridescent Black colorway really sets this bike apart without being flashy, and graphics inspired by Travis’s design ideas really finish off the look of this bike.
In addition to the full 100% 4130 chromoly frame and fork, the Cloud features an amazing list of components. This model comes with aftermarket Kink Rex 9.5” 13-butted 100% 4130 chromoly bars, Kink Ericsson Stealth seat, and Kink 2.4” Sever tires front and rear. The integrated seat clamp, removable brake design, and Mission Pace freecoaster rear wheel solidify the aftermarket look and feel to this bike. To top it all off, the Cloud of course comes standard with four Mission Targa plastic pegs.
TECH SPECS
FRAME Kink Cloud Stock 100% 4130 Chromoly | PEDALS Kink Hemlock |
FORK Kink Trident Fork 100% 4130 Chromoly 1pc Steerer Tube Tapered Fork Legs | CHAIN Mission 510H |
BARS Kink Rex Bars 9.5″ 100% 4130 Chromoly 13-Butted TruTherm | SPROCKET Kink Imprint 25T CNC 7075-T6 |

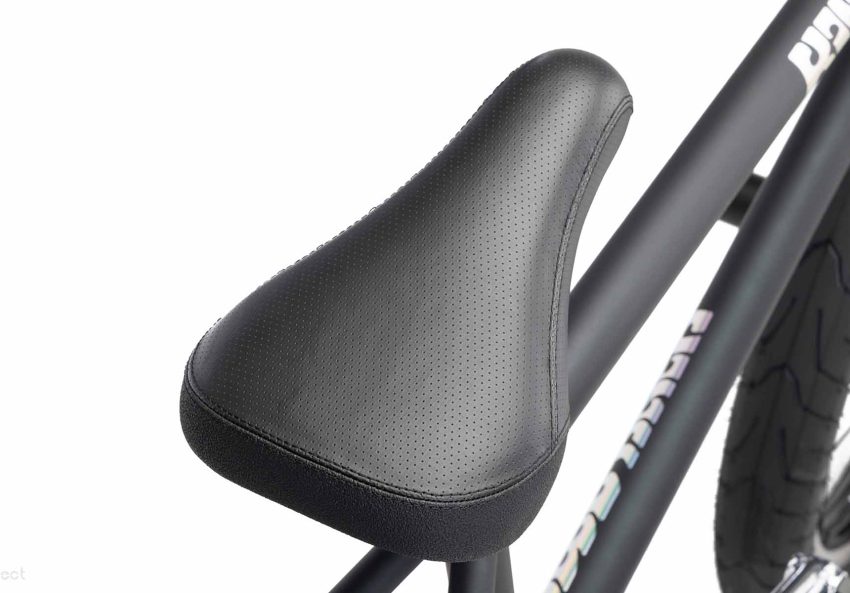

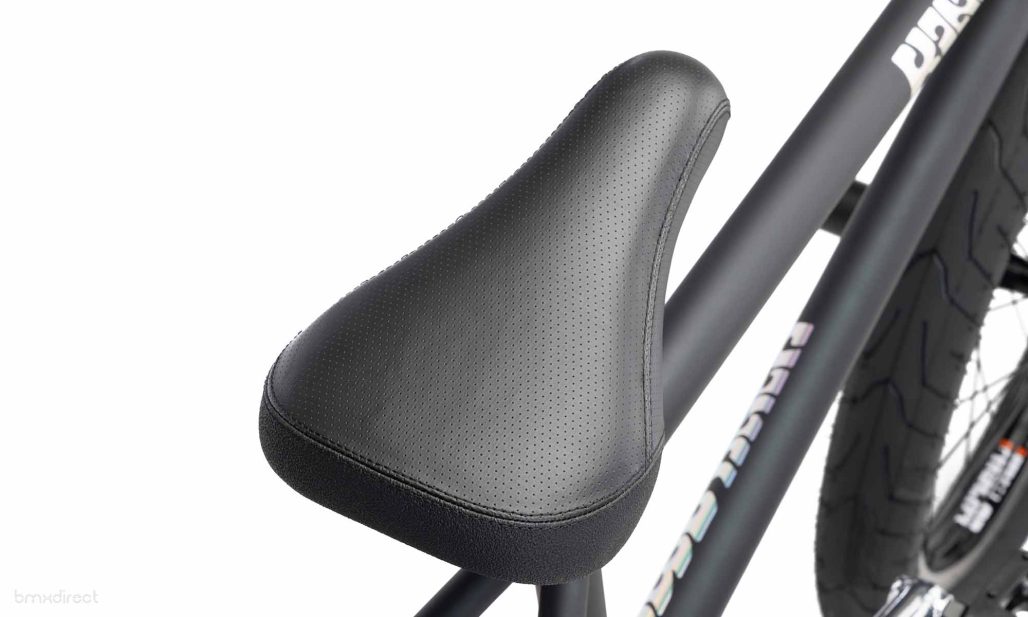

GRIPS Kink Form, Thrust Barends | SEAT Kink Ericsson Stealth |

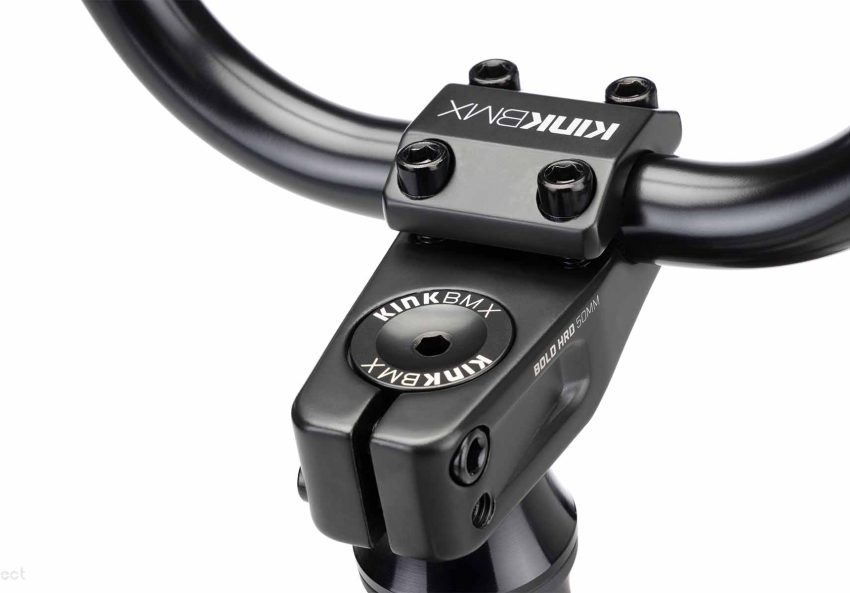

STEM Kink Bold HRD 50mm | SEAT POST Mission Aluminum Stealth |
HEADSET Mission Sealed Integrated (41.8 x 45) | SEAT CLAMP Integrated |
BRAKE LEVER Mission Token | FRONT HUB Mission Bond Sealed Bolt-In |
BRAKE CABLE Mission L4 Linear | REAR HUB Mission Pace Sealed Freecoaster 14mm |
BRAKES Mission Cease V2 (Removable Mounts) | DRIVER 9T |

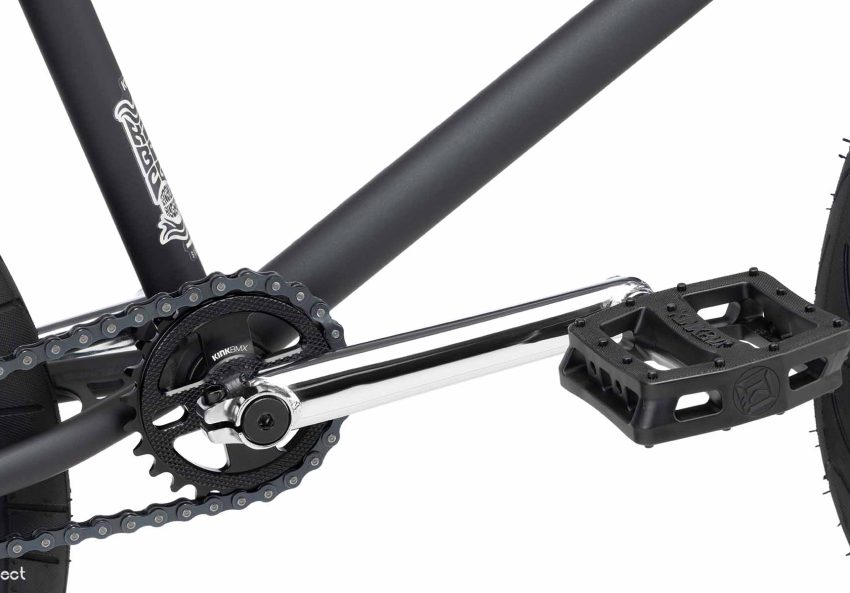

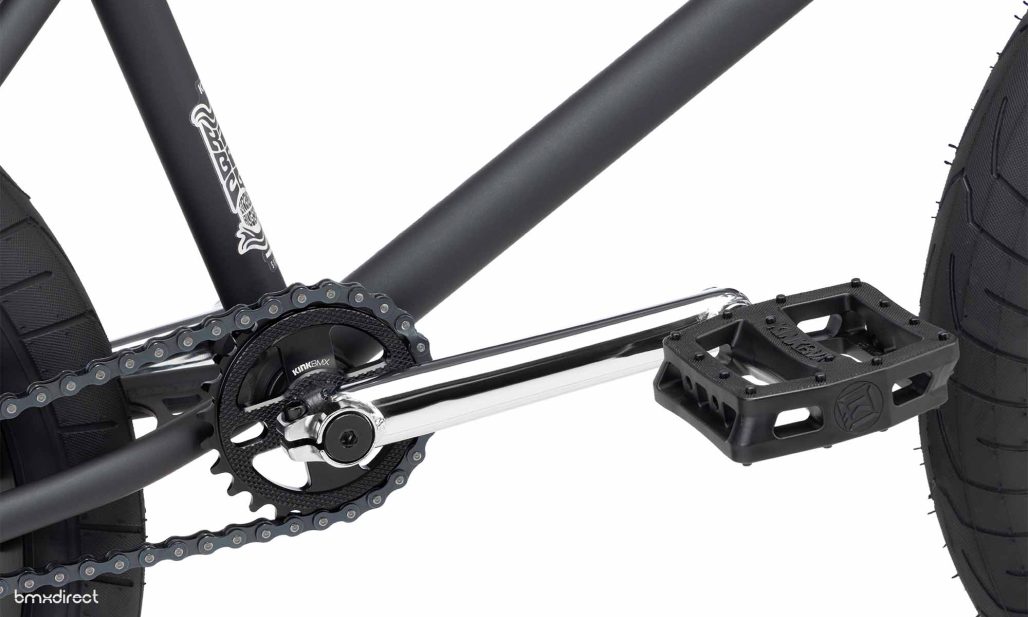

CRANKS Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline | RIMS Mission Mylar |

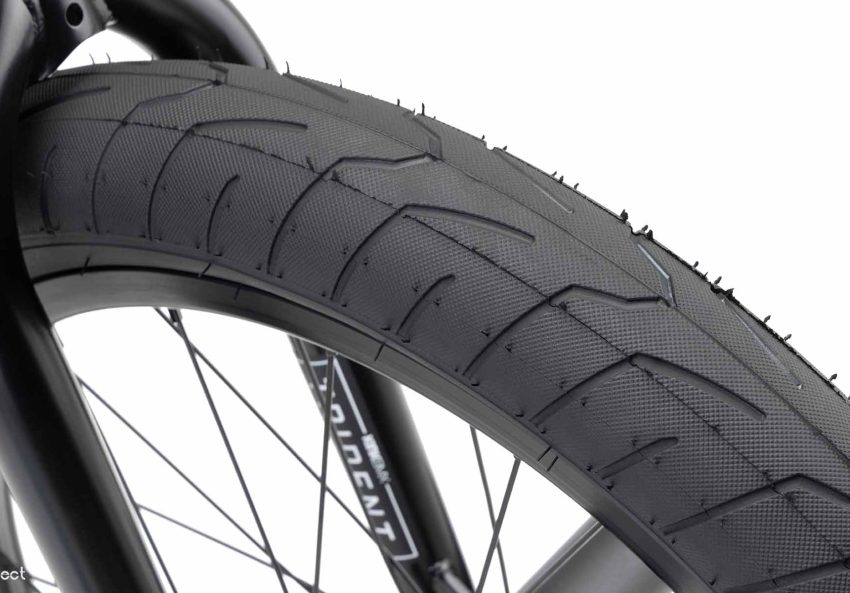

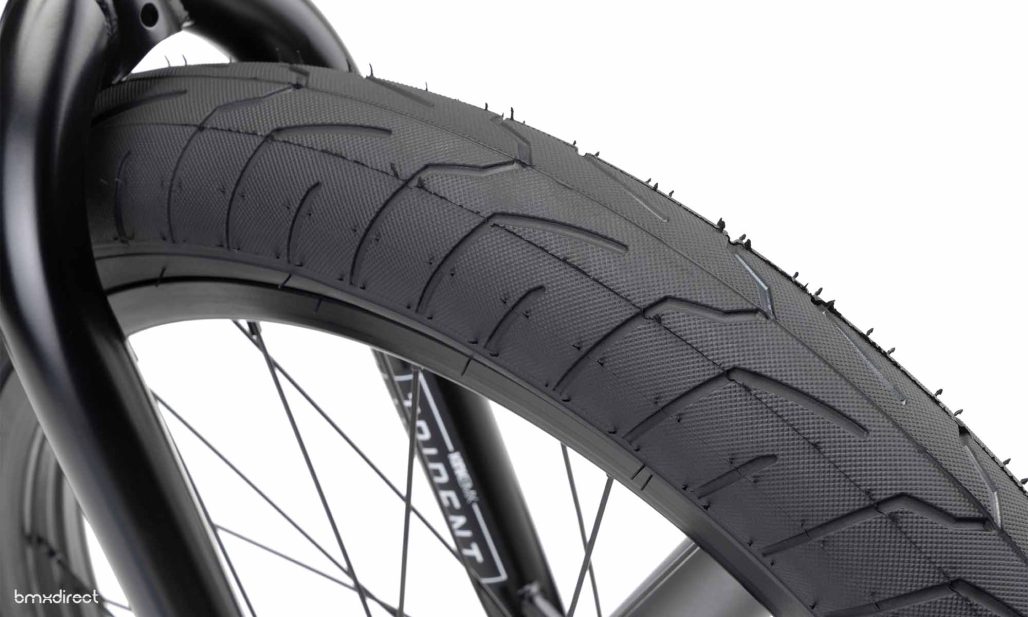

BOTTOM BRACKET Sealed Mid 19mm | TIRES Kink Sever 2.4″ |
PEGS 4 x Mission Nylon Pegs | WEIGHT 27lb 1oz |
GEOMETRY
Toptube Length | 21″ |
Chainstay Length | 13.25″ |
Headtube Angle | 75.5° |
Seattube Angle | 71° |
Standover Height | 8.75″ |
Bottom Bracket Height | 11.65″ |
Fork Offset | 26mm |
Additional information
Colour | Black |
---|---|
Top Tube Size | 21" |
Brand | Kink |
Hub Type | Freecoaster |
Hub Drive Side | Right Side Drive (RSD) |
