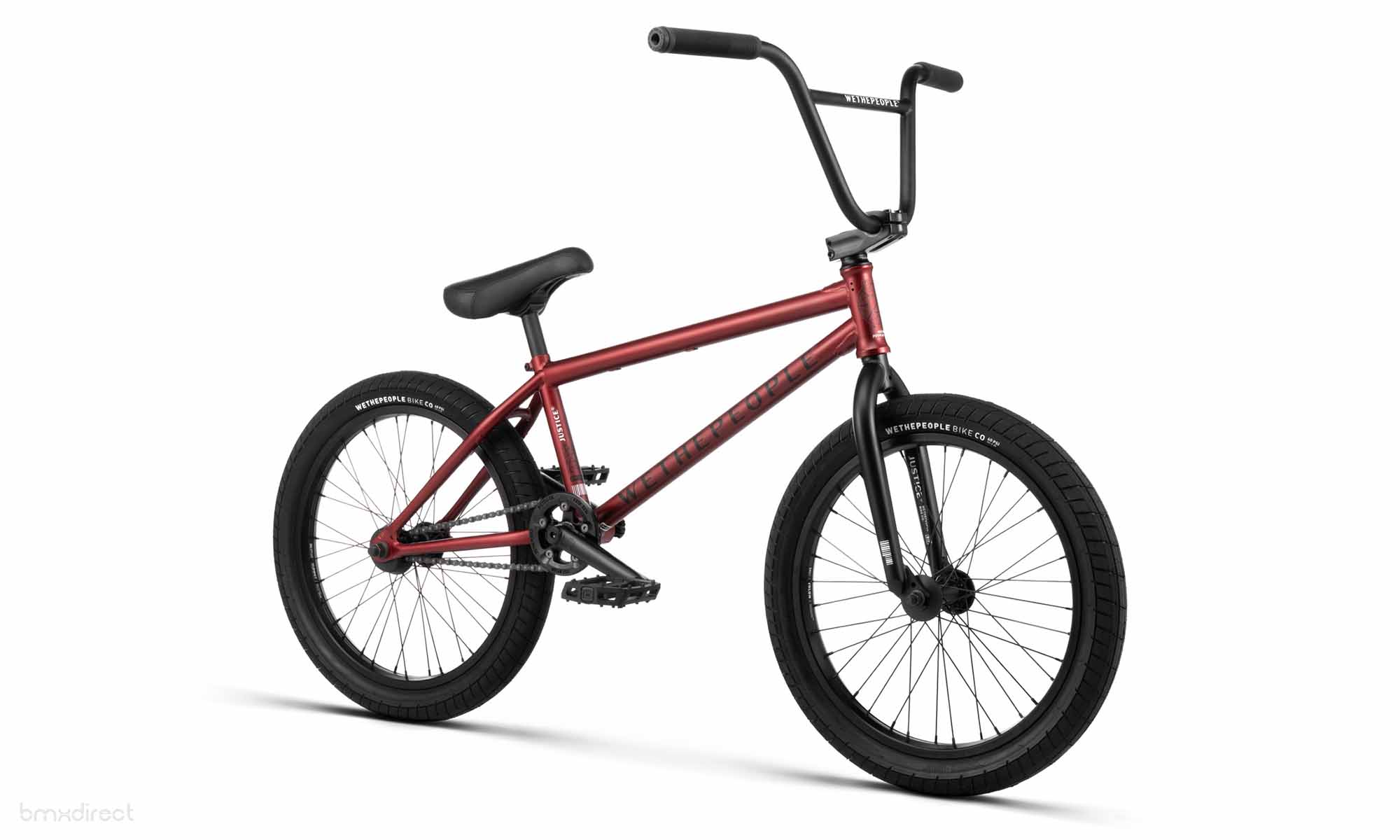

FRAME: WETHEPEOPLE “JUSTICE” frame, 4130 trimoly, tapered SS & CS, with removable brake pivots & guides
FORK: SALTPLUS “JUSTICE” fork, 4130 full crmo, butted crmo steerer, 22mm offset
BARS: SALTPLUS “HQ” bar, 4130 full crmo
Grips: WETHEPEOPLE “PERFECT” grips, 165mm, flangeless

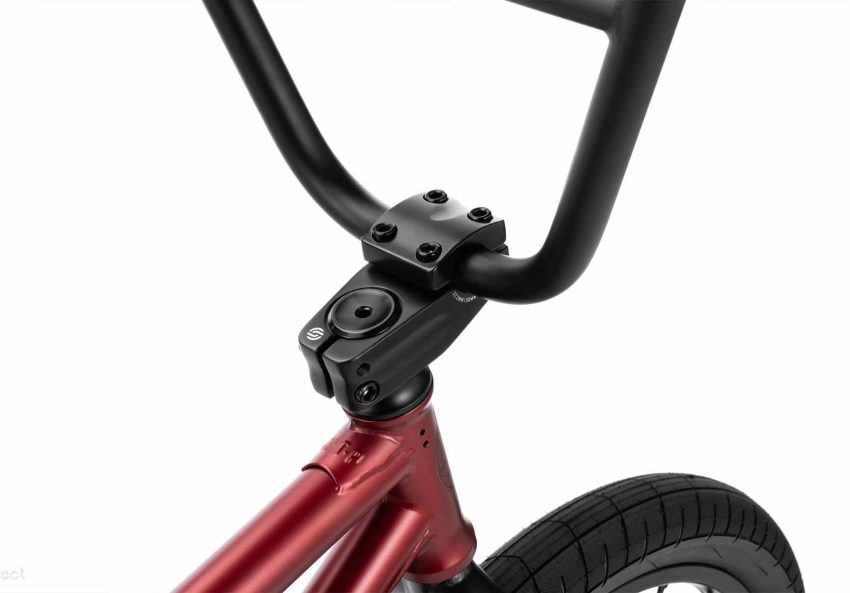

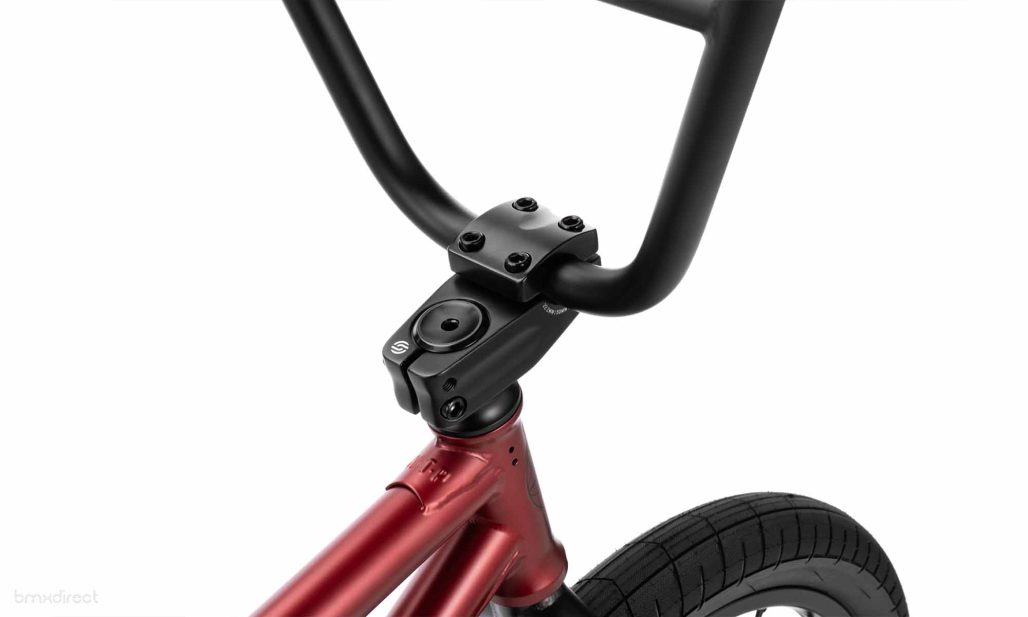

STEM: SALT “ZION” topload stem, 50mm reach
HEADSET: SALT “PRO” int. headset, sealed bearing
GYRO: holes for removable gyro tabs
LEVER: SALT “AM” brake lever, alloy
BRAKES: SALTPLUS “GEO XL” alloy u-brake rear

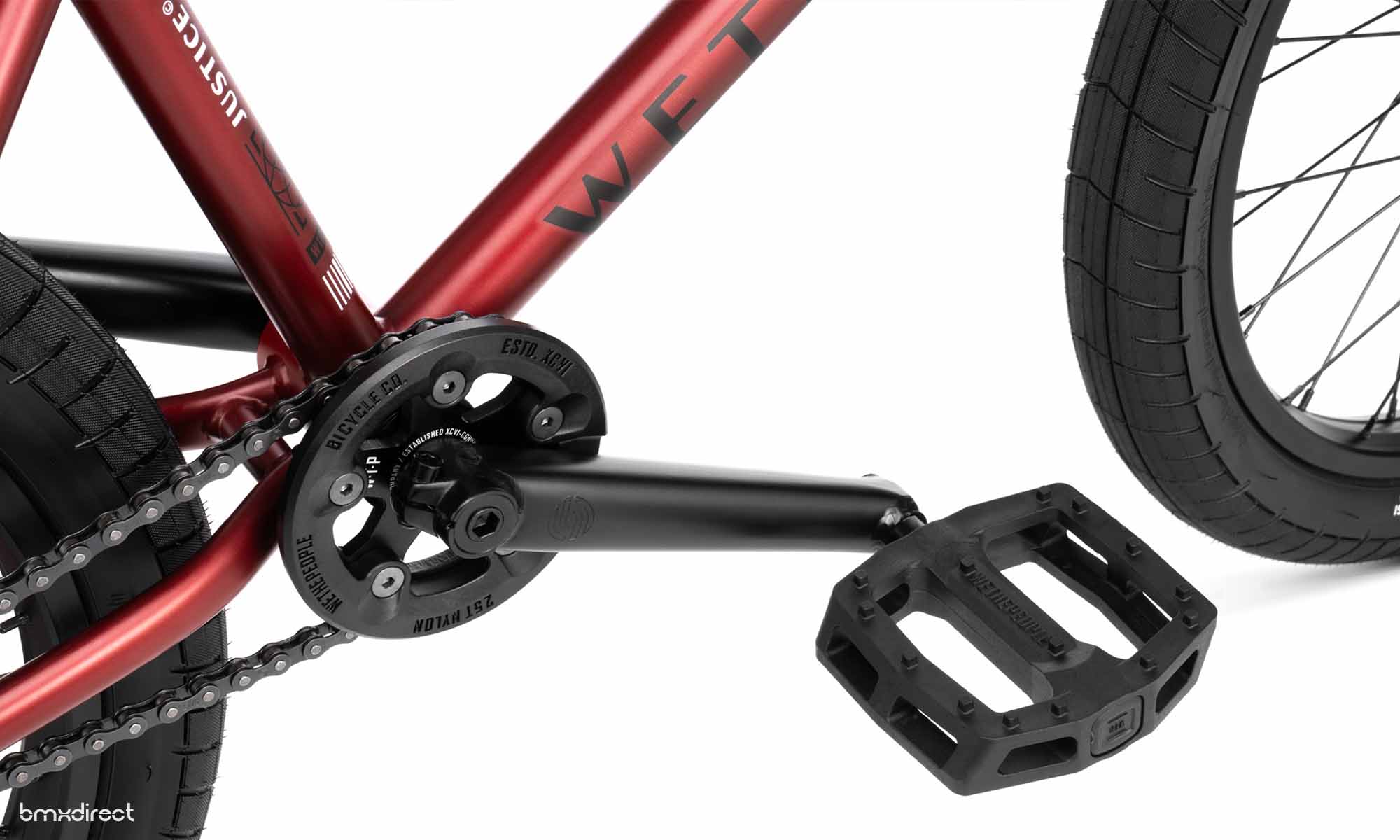

CRANKS SALT “REVO” square profile 3pc crank, crmo, 165mm, 8 spline
BB: SALT “MID” bb, 19mm, press fit, sealed bearing
PEDALS: WETHEPEOPLE “LOGIC” pedals, nylon/fiberglass
CHAIN: SALT “AM” chain, Z1 type
SPROCKET: WETHEPEOPLE “PARAGON” sprocket & nylon guard, 6061-T6 alloy, 25t
DRIVER: 1pc cassette driver, 9t, sealed bearing
FRONT HUB: SALT “PRO” hub, fully sealed, 3/8″s male axle, 36h

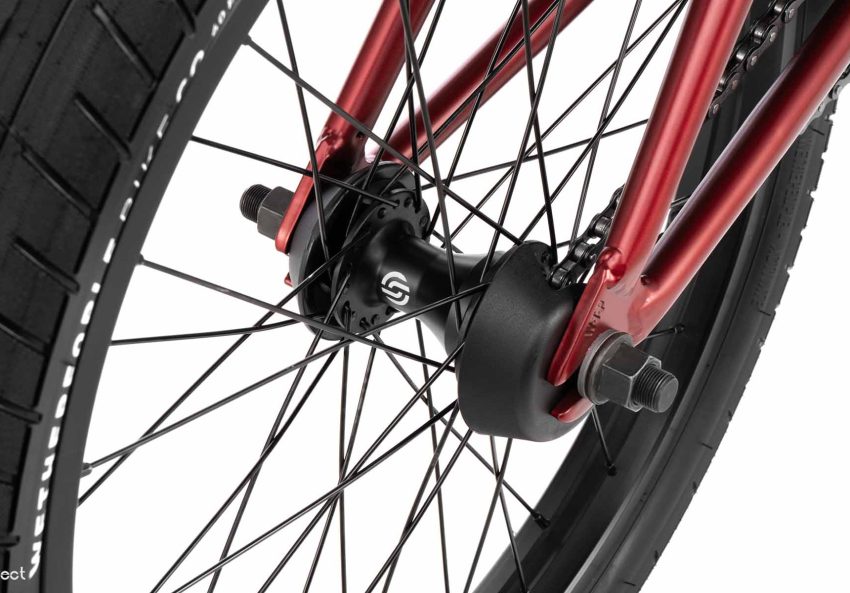

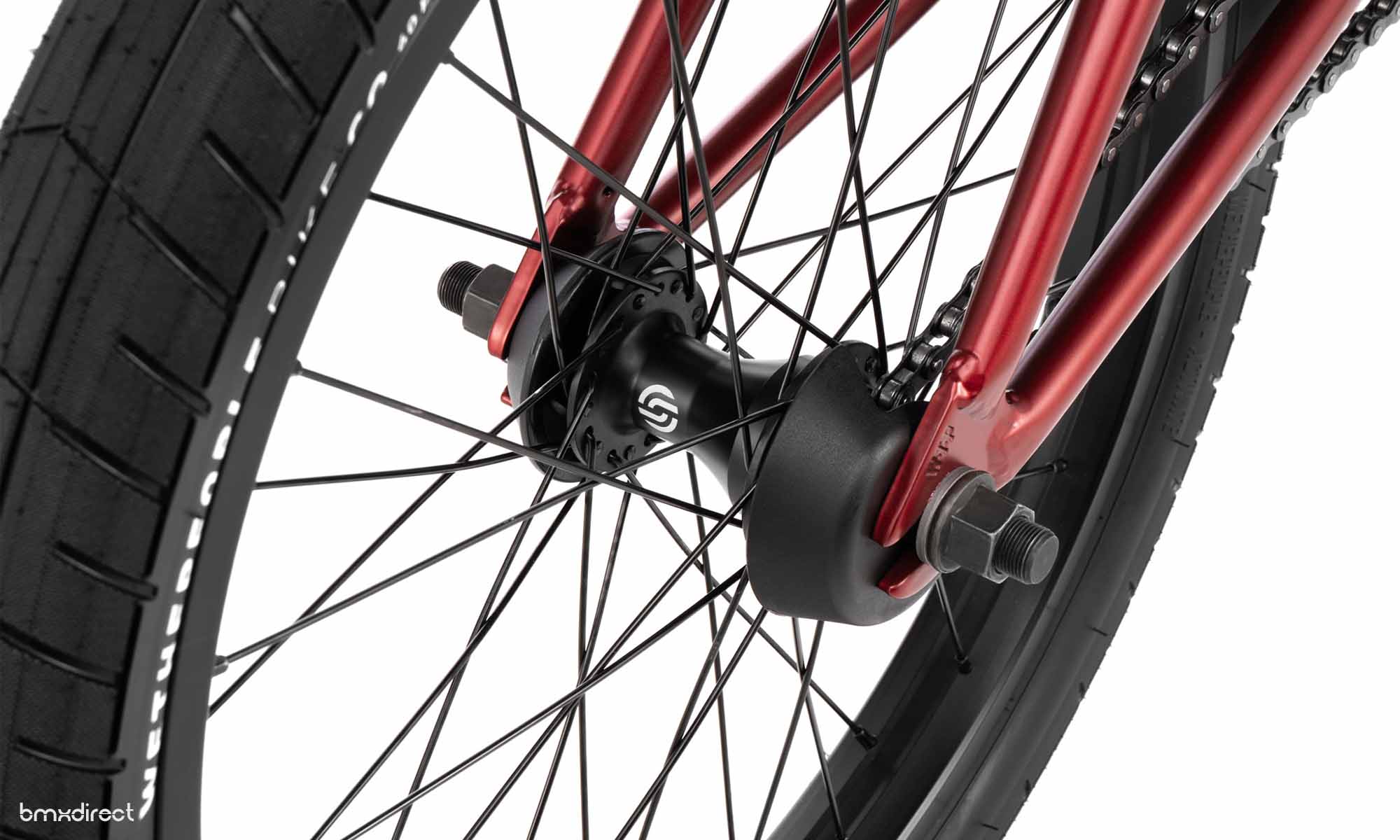

REAR HUB: SALT “PRO” cassette hub, fully sealed, 9t, 14mm axle, 36h
HUBGUARDS: SALT “PRO” hub guards – nylon/fiberglass front (x2), nylon/fiberglass rear (x2)
FRONT RIM: SALT “VALON” rim, single wall, 36h
REAR RIM: SALTPLUS “SUMMIT” rim, double wall, 36h

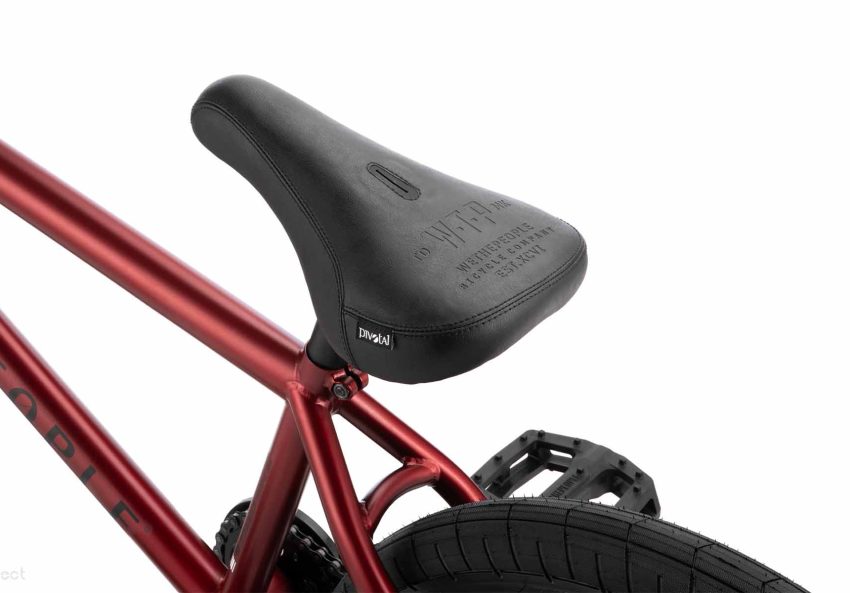

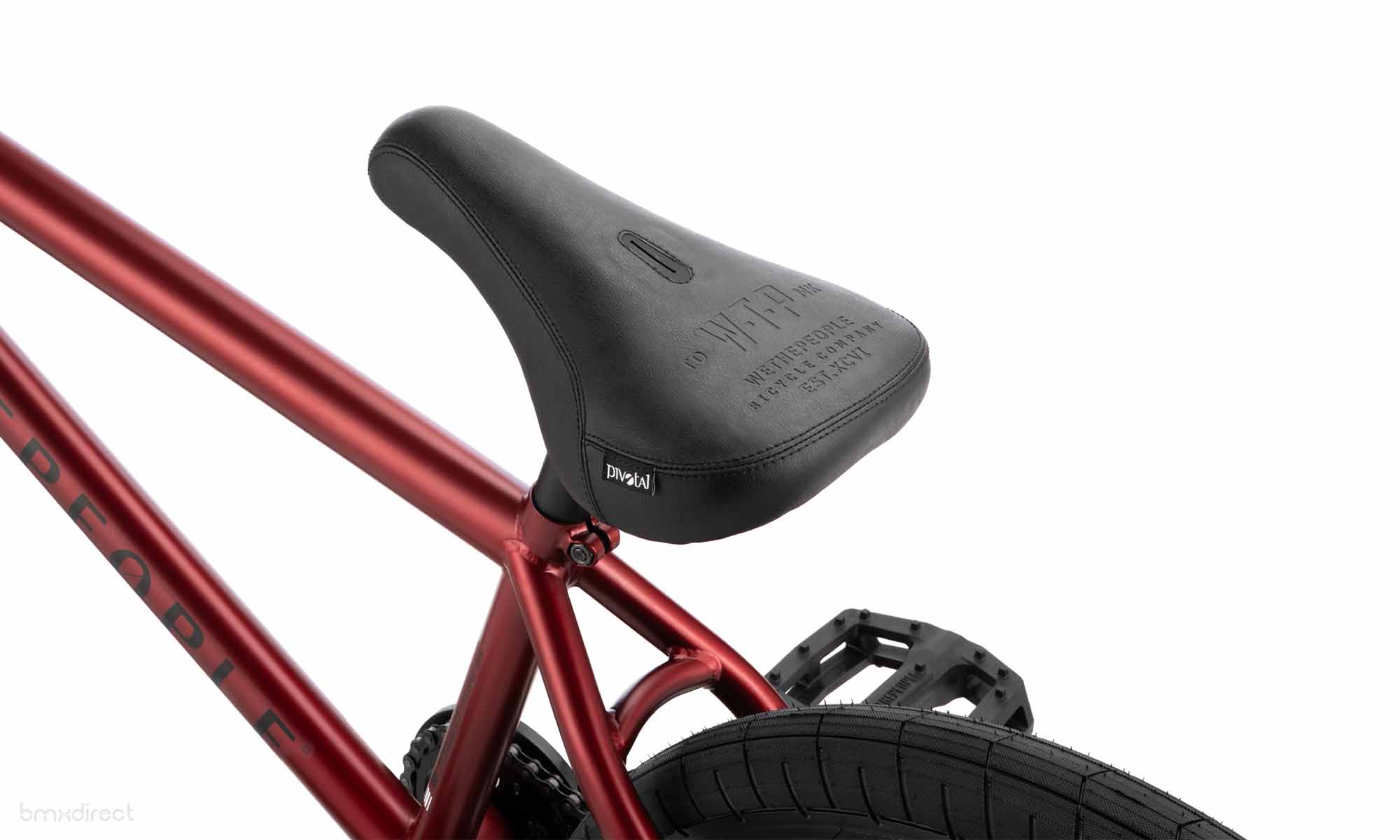

SEAT: ÉCLAT “BIOS” pivotal seat / ÉCLAT “COMPLEX” combo seat (TRANS BLACK MODEL)
SEAT POST: SALT “AM” pivotal seat post
SEAT CLAMP: integrated seat clamp
TIRES: WETHEPEOPLE “ACTIVATE” tires, 2.35″, 60PSI , front & rear
PEGS: –
WEIGHT: 11.79kg / 25.83lbs
FRAME
A – TOP TUBE LENGTH: 20.75″
B – CHAIN STAY LENGTH: 12.75″
C – HEAD TUBE ANGLE: 76°
D – SEAT TUBE ANGLE: 71°
E – BB HEIGHT: 11.75″
F – STANDOVER HEIGHT: 9″
