Description

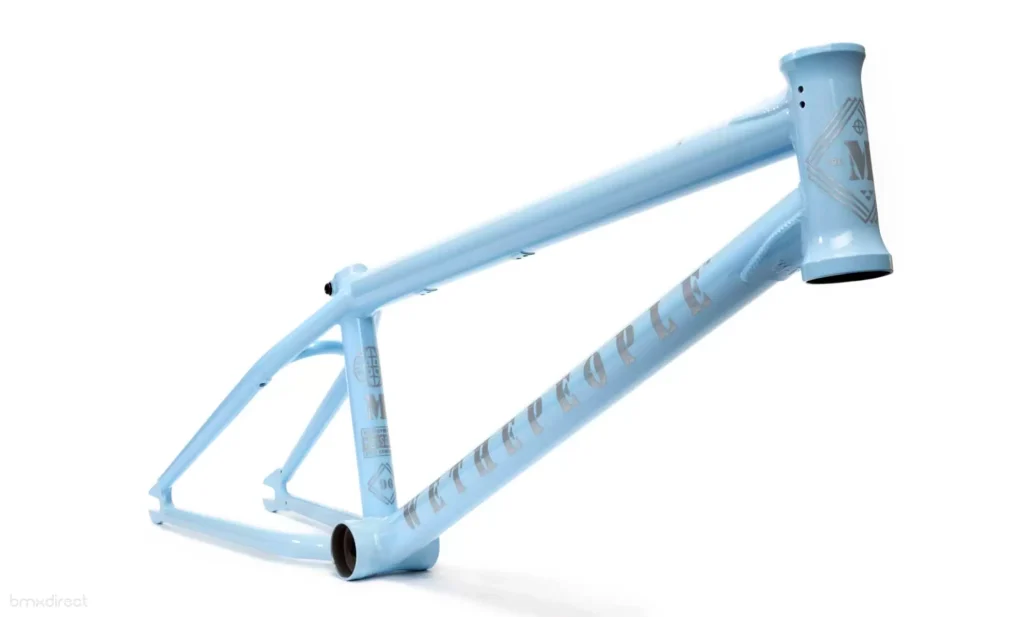

We Wanted To Grow From Our Current Frame Line, And Offer A Full Aftermarket Alternative For Riders That Need A Strong, But Lightweight Technical Park Setup Built To Last. The Message Frame Boasts A Lower Stand Over Height, Fast Geometry And Custom Dual Cable Brake Hardware Making It Perfect For The Technical Ramp Rider. Includes Lifetime Guarantee.

Tubing:  Butted, Japanese Seamless 4130 Crmo Tubing

Bottom Bracket:  74mm Mid Size, Cnc Machined And Heat-Treated

Head Tube:  117mm Cnc Machined And Heat-Treated, Integ. H/Set, Drilled For Gyro Tabs

Dropouts:   6mm Cnc Machined And Heat-Treated, Minimal Size Yet Still Peg Compatible, Heat-Treated 4130 Crmo

Brakes:   Pivot-3 Removable Brake Mounts, Frame Comes Without Repl. Brake Hardware

Special Features:

• Park/Transition Inspired Technical Frame
• Extruded Top Tube With Integrated Threads For Cable Guides
• Curved Seat Stay Bridge And Chain Stay Bridge
• Wider Rear Triangle Allows Clearance For A 2.4″ Tire
• 6mm Seat Clamp Bolt • Wtp Top Tube And Down Tube Gusset
• Ovalised Chain Stays For Increased Tire & Sprocket Clearance
• Includes Lifetime Guarantee
• Weight:  2.4kg (5.32 Lbs.) – 21″ Tt

Geo:

– Chain Stay Length:   12.95″ – 13.5″ – Optimized  For 13‘‘/13.25‘‘ W/25-9

– Head Tube Angle:  75.5°

– Seat Tube Angle:  71°

– Bb Height:  11.5″

– Standover Height:  8″
